Protection Measures

Protection Measures

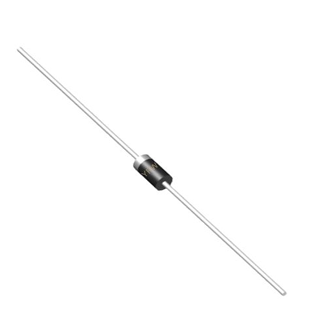

To protect the fast recovery diode from excessive voltage and current spikes, consider implementing additional protection circuits. A transient voltage suppressor (TVS) can be placed across the diode to clamp voltage spikes. Fuses or current-limiting resistors can be used to restrict excessive current flow in case of a fault. Proper layout design, with wide traces for high-current paths, also helps in reducing voltage drops and preventing overheating.

Application-specific Tips

In switching power supplies, fast recovery diode are commonly used in the output rectifier stage. Here, selecting a diode with low forward voltage drop (VF) is important to improve efficiency. For motor drive circuits, FRDs are used as freewheeling diodes to protect the switching devices from the back EMF generated by the motor. In this case, ensure the diode can handle the peak current and voltage generated during the freewheeling process.

By following these guidelines, you can ensure the optimal performance and reliability of fast recovery diode  in your electronic designs. Always refer to the manufacturer's datasheet for specific parameters and recommendations for the particular diode model you are using.
