Circuit Design Considerations

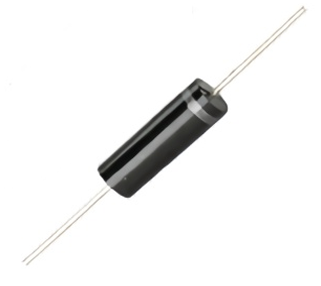

In circuit design, high - voltage diodes should be incorporated with appropriate protective measures. For example, connecting a current - limiting resistor in series with the diode can prevent excessive forward current from damaging it. In reverse - biased applications, ensure that the circuit voltage does not exceed the diode's maximum reverse breakdown voltage. It is also advisable to use voltage clamping devices, such as zener diodes or metal - oxide varistors, to protect the high - voltage diodes  from transient voltage spikes. Moreover, consider the heat dissipation of the diode. If the power dissipation is relatively high, install a suitable heat sink to keep the diode's operating temperature within its specified range, as overheating can significantly reduce its performance and lifespan.

Testing and Maintenance

After the high - voltage diodes is installed in the circuit, conduct thorough testing. Use a multimeter to measure the voltage across the diode and the current flowing through it under different operating conditions to ensure they are within the normal range. Check for any signs of overheating, such as discoloration of the diode or the surrounding components, which may indicate a problem. Regular maintenance is also important.
