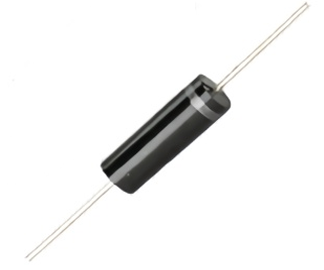

How to Use High-Voltage Diodes

How to Use high - voltage diodes

Pre - use Preparation

Before using high - voltage diodes, it is crucial to have a good understanding of their specifications. Carefully check parameters such as the maximum reverse breakdown voltage, forward current rating, and power dissipation capability to ensure they meet the requirements of your specific application. Additionally, prepare the necessary tools and equipment, including appropriate soldering tools, multimeters for testing, and protective gear like insulated gloves and safety glasses, as high - voltage operations pose potential risks.

Installation Steps

When installing high - voltage diodes, first, make sure the circuit is powered off to avoid electric shock. Clean the installation area to remove any dust, debris, or conductive particles that might affect the performance. Then, position the diode correctly, paying attention to the polarity - the cathode and anode must be connected as per the circuit diagram. Use proper soldering techniques to attach the diode to the circuit board, ensuring that the soldering joints are smooth, firm, and free from cold soldering or excessive solder that could cause short circuits. After installation, double - check the connections to ensure they are secure and correct.
