Usage of High-Voltage Diodes 3

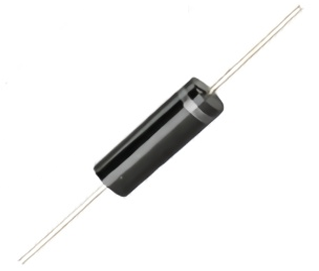

high-voltage diodes It is also important to implement proper insulation and spacing in the circuit to avoid electrical arcing or breakdown between components. High-voltage traces on printed circuit boards should be kept sufficiently wide and spaced apart, and insulating materials should be used to cover exposed high-voltage connections.

Testing and Maintenance

Regular testing and maintenance of high-voltage diodes are essential to ensure their continued reliable operation. Using a high-voltage multimeter or a specialized diode tester, check the diode's forward and reverse resistance to verify that it is functioning within the specified parameters. If any abnormalities are detected, such as a significant increase in reverse leakage current or a decrease in forward conductivity, the diode should be replaced promptly.

During maintenance, inspect the diode and its surrounding components for signs of overheating, such as discoloration or charring. Clean any dust or debris from the heat sink to maintain optimal heat dissipation. Additionally, check the connections to the diode to ensure they are secure and free from corrosion, as loose or corroded connections can cause voltage drops and excessive heating.

By following these guidelines for the usage of high-voltage diodes, engineers and technicians can ensure the safe and reliable operation of high-voltage electronic systems, minimizing the risk of component failure and system downtime.
