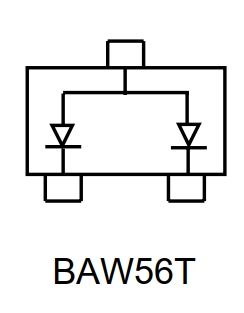

BAW56T 0.2A 85V SOT-523 marking:A1 Switching diode yfwdiode brand

Model: BAW56T

 Encapsulation: SOT-523

 Average rectification positive current l(FAV): 0.2A

 Maximum Repeated Peak Reverse Voltage Vrrm: 85V

 Positive electric surge peak I (FSM): 1A

 Positive voltage: at IF=1mA VF=0.715V

 At IF=10mA VF=0.855V

 At IF=50mA VF=1V

 At IF=150mA VF=1.25V

 Reverse current: VR=25V IR=30nA

 VR=75V IR=2uA

 Number of pins: 2

 Product characteristics: fast switching speed and high conductivity

 Product application: suitable for general switching applications
